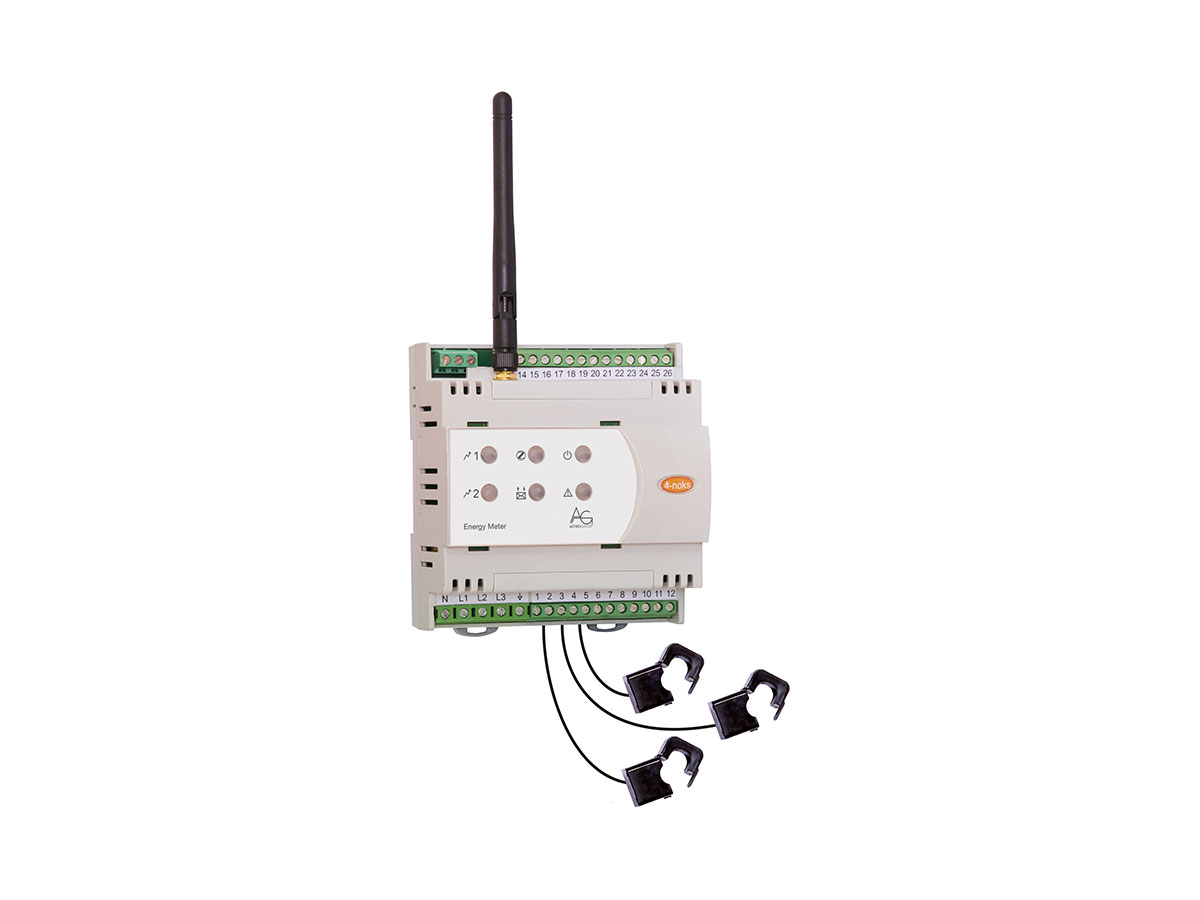

Energy Meter 3~ RC

Wireless power metering device for Elios4you [Pro] Smart systems

SKU: ZR-HM3-xx-RC. Categories: , .

Product Description

How it works

Energy Meter 3~ RC is a wireless power metering device for Elios4you [Pro] Smart systems. The device can have a dual function: as a replacement for one of the measurement transformers (CT) installed with Elios4you, or for monitoring energy drawn by a consumer (e.g. heat pump).

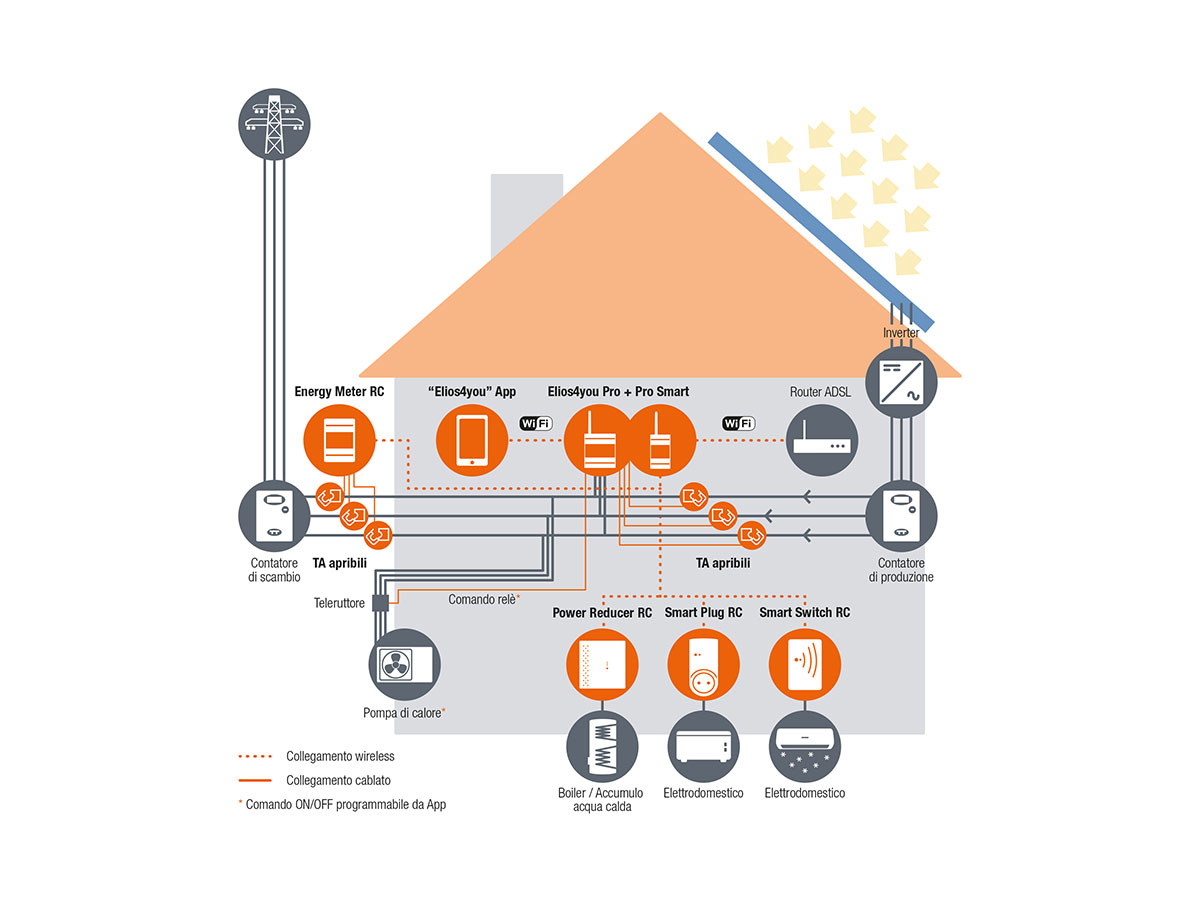

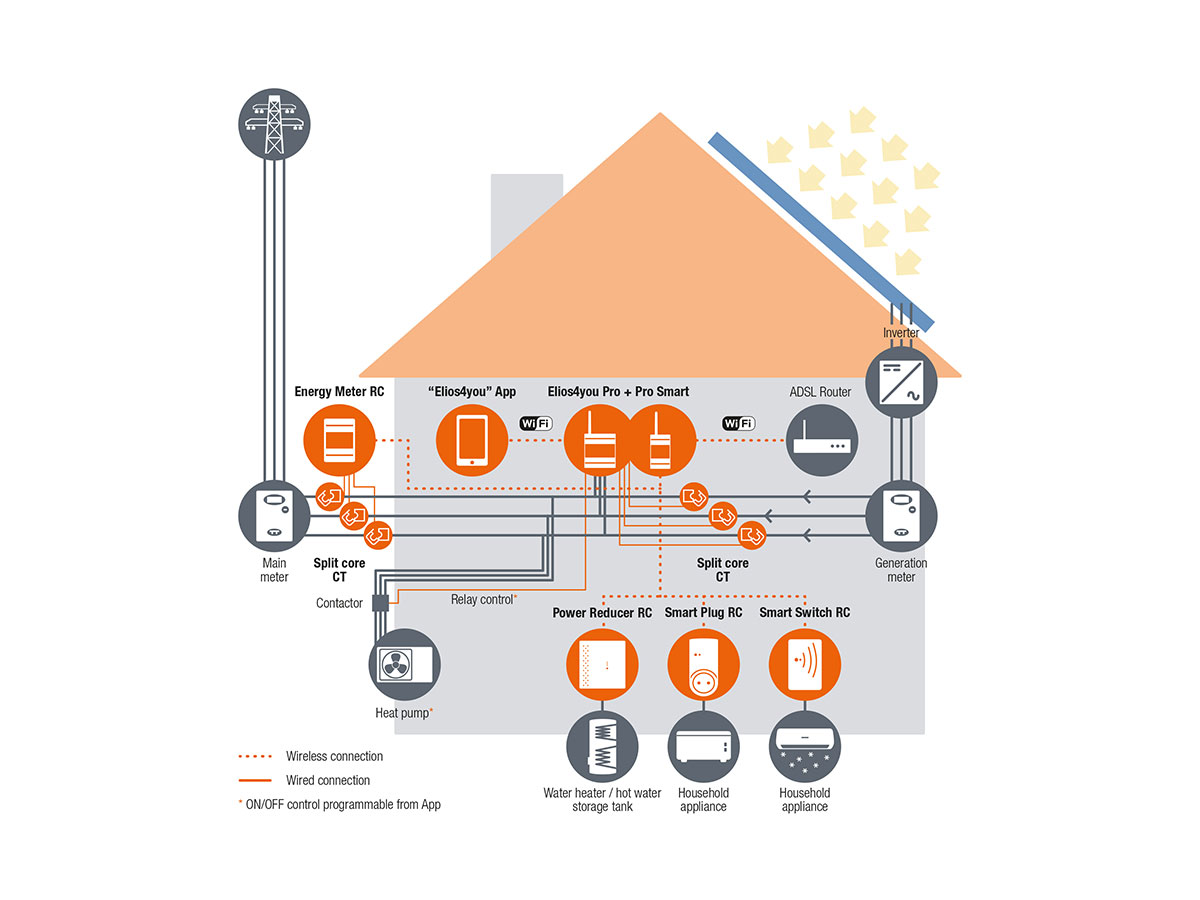

Where the Energy Meter RC is used for remote management of a CT in the Elios4you system, the information will be the same as acquired with a wired CT. Conversely, if the device is used for monitoring a consumer via the “Elios4you” App, it will be possible to view all the data indicating energy exchanged with the consumer (in the case of a storage system, both energy stored and energy drawn) on a dedicated page.

Main features

  • Wireless energy meter
  • Simple and swift installation
  • Guided configuration by way of “Elios4you” App
  • ZigBee technology
  • Precise voltage and current measurement
  • Transmission of energy and exchanged power data
  • Viewing of data by way of “Elios4you” App

Available versions

Codice Prodotto
ZR-HM3-50-RC Energy Meter 3~ RC (50 A max)
ZR-HM3-100-RC Energy Meter 3~ RC (100 A max)
ZR-HM3-200-RC Energy Meter 3~ RC (200 A max)

Compatible with

Technical data sheet

General specifications ZigBee three-phase energy meter with data transmission
Power supply 230 Vac 1.5 W 50/60 Hz
Radio specifications Frequency: 2405 MHz to 2480 MHz
Compatible with IEEE 802.15.4
Transmission power; +10dBm ERP (10mW)
External antenna
Indicative indoor/outdoor range 40/150 m
Max current ZR-HM3-50-RC: 50 A max
ZR-HM3-100-RC: 100 A max
ZR-HM3-200-RC: 200 A max
Measurements Bidirectional active power [W]
Bidirectional energy [Wh]
Antenna External antenna
Environmental parameters Operating conditions: 0 to +50 °C; <80% RH non-condensing
Storage conditions: -20 to +70°C; <80% RH non-condensing
Degree of protection IP30
Conformity Directives 2014/30 EU; 2014/35 EU; 99/5 EEC; 2011/65 EU
Reference standards: EN62053-21: Active energy – Class 1 ±1%; EN62053-23: Reactive energy – Class 3 ±3%; ETSI-EN 300 328; ETSI EN301 489; EN61326-1:2013; EN50581; EN55010; EN55011; EN61010-1
Dimensions (L x H x D) 6-module DIN rail housing 105 x 110 x 60 mm
