“Elios4you” App wizard configurazion for Android device
Mimimum requirements: Android 2.3.3
- Direct mode: direct connection from your smart device (smartphone/tablet) to the Wi-Fi link directly from the Elios4you transmitter (no need for a Wi-Fi router / broadband connection).
- Indirect mode: connection between the Elios4you device and “Elios4you” App using the Wi-Fi router/broadband connection on site
Direct mode
![](http://www.4-noks.com/wp-content/uploads/2016/10/Elios4you-App-Android-EN-01.png)
1) Select “I’ll connect directly to the device”
2) Press “Next”
![](http://www.4-noks.com/wp-content/uploads/2016/10/Elios4you-App-Android-EN-02.png)

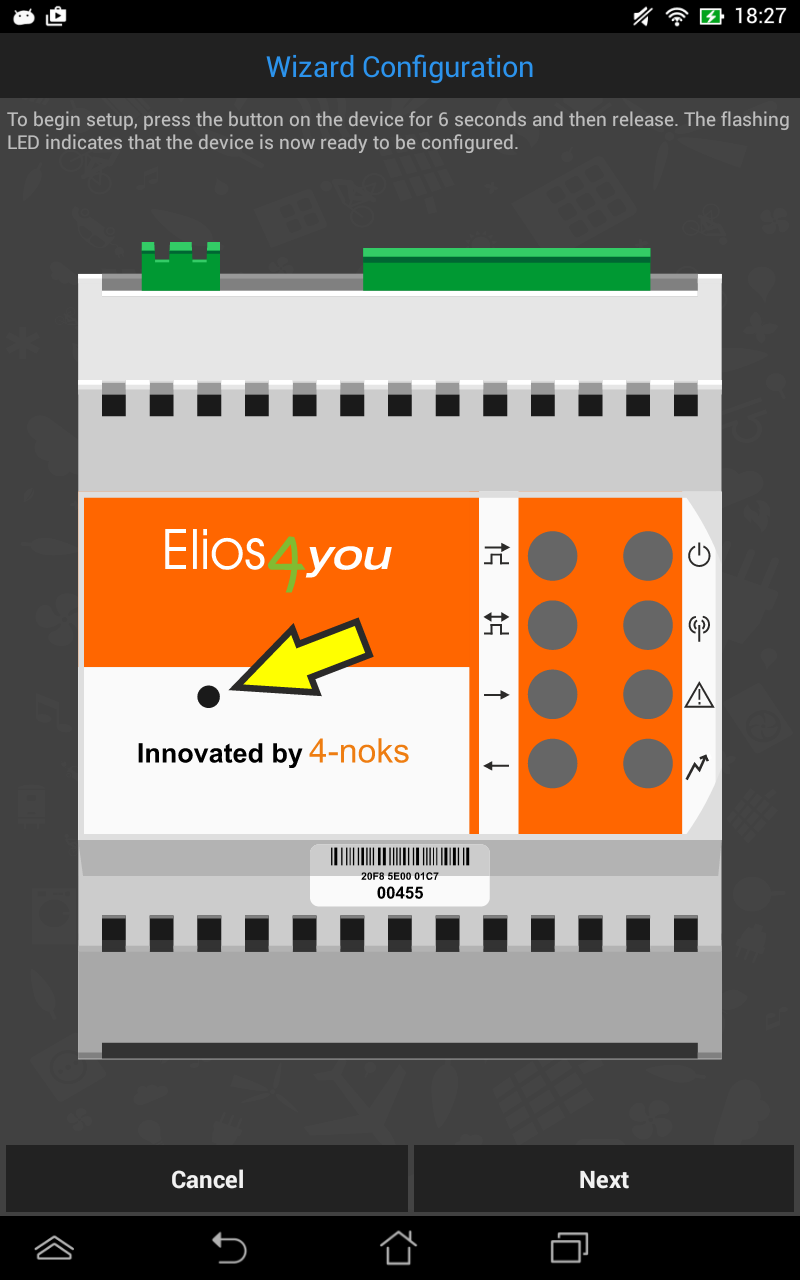

3) Hold down the configuration button (on the Elios4you device) for 6 seconds, when released the LEDs will begin to flash in a clockwise sequence
4) Press “Next”
![](http://www.4-noks.com/wp-content/uploads/2016/10/Elios4you-App-Android-EN-04.png)

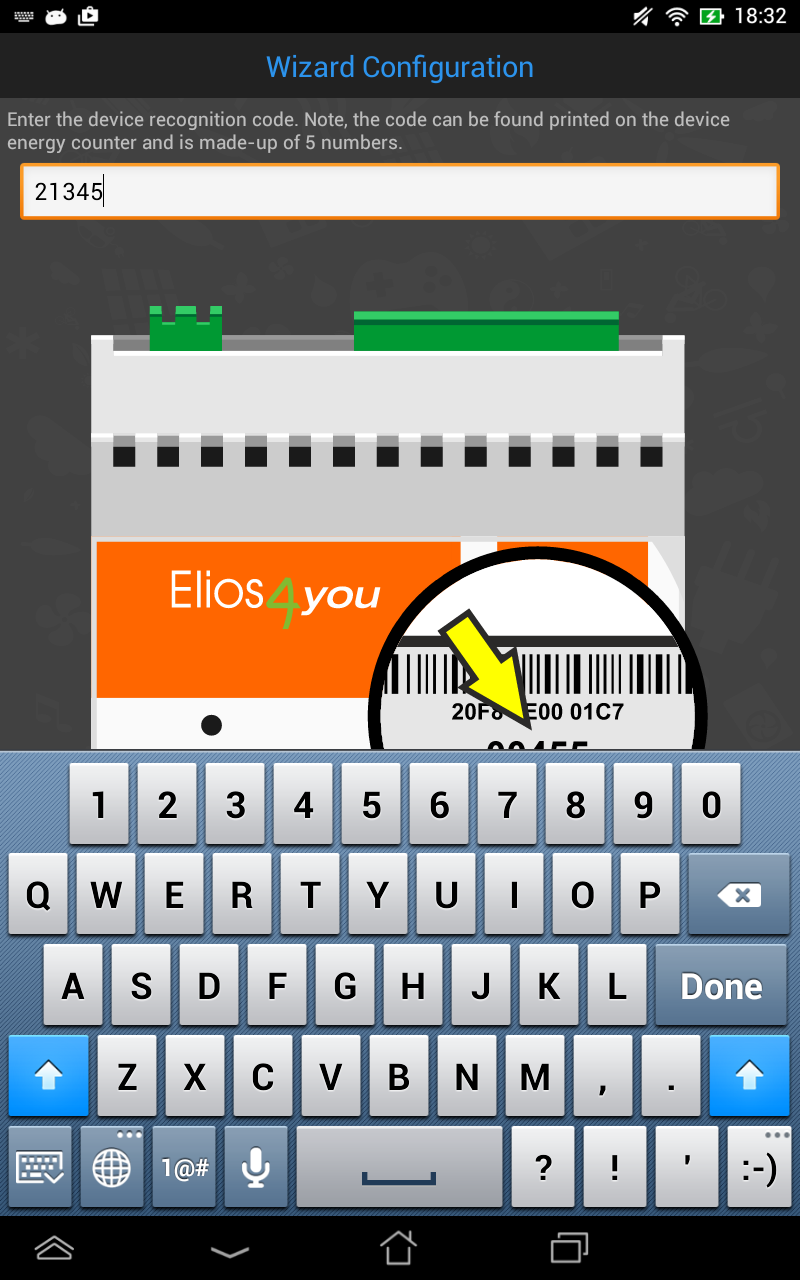

5) Inset the “ID Code” (5 digits) found on the label of the Elios4you device
6) Press “Next”
![](http://www.4-noks.com/wp-content/uploads/2016/10/Elios4you-App-Android-EN-07.png)

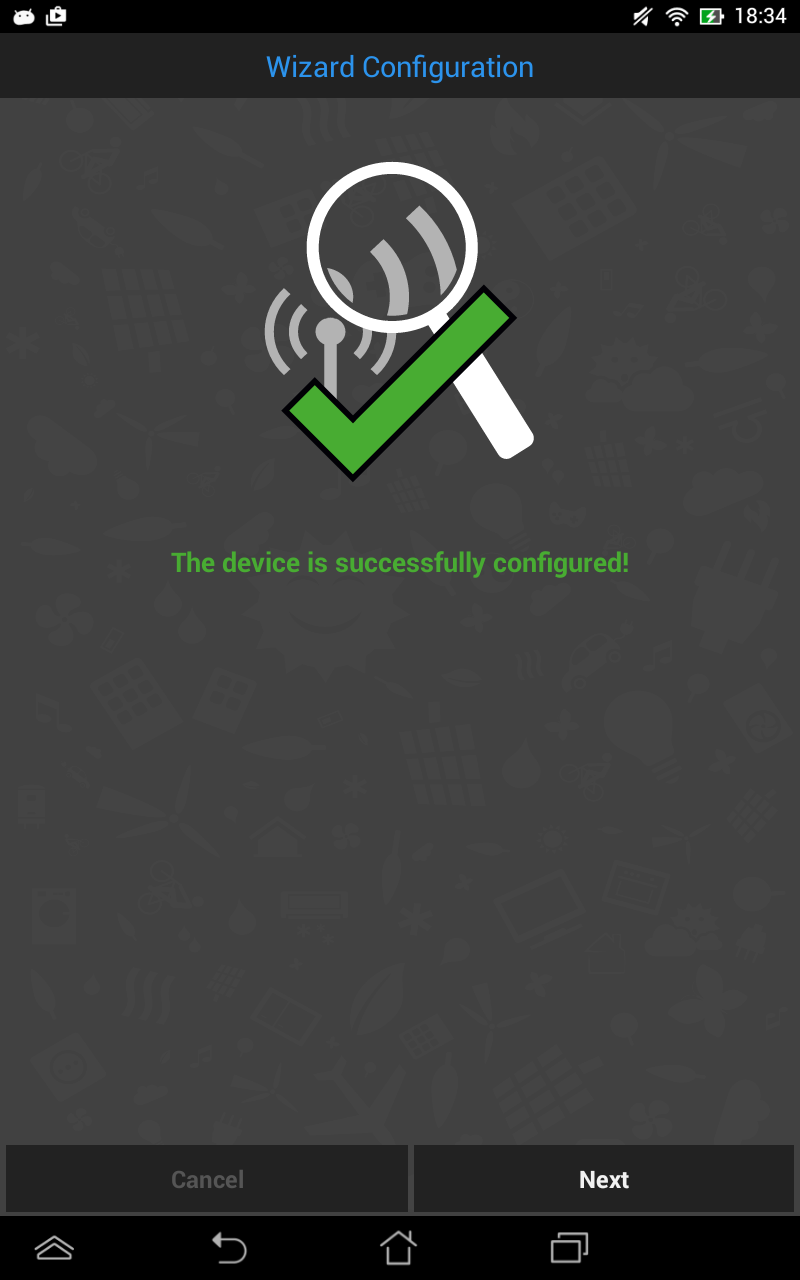

7) The successful confirmation of connectivity will be indicated by a green tick
8) Press “Next”
![](http://www.4-noks.com/wp-content/uploads/2016/10/Elios4you-App-Android-EN-08.png)
Finish the Configuration procedure. The “Elios4you” App should now begin to receive data from the Elios4you device.
Now you can set the system parameters.
Indirect mode
![](http://www.4-noks.com/wp-content/uploads/2016/10/Elios4you-App-Android-EN-01.png)
1) Select “I want to use my Wi-Fi access point”
2) Press “Next”
![](http://www.4-noks.com/wp-content/uploads/2016/10/Elios4you-App-Android-EN-02.png)
3) Hold down the configuration button (on the Elios4you device) for 6 seconds, when released the LEDs will begin to flash in a clockwise sequence
4) Press “Next”
![](http://www.4-noks.com/wp-content/uploads/2016/10/Elios4you-App-Android-EN-03.png)

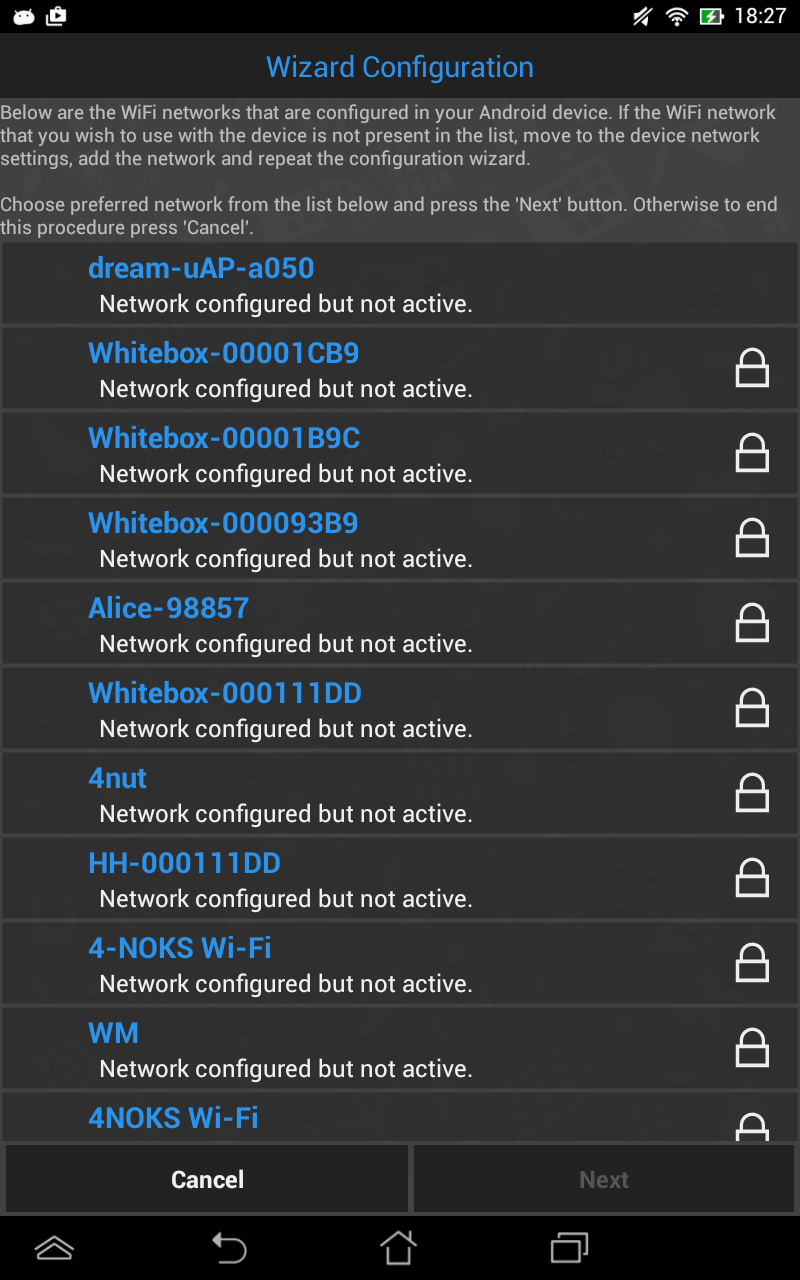

5) Select the Wi-Fi network to connect to the Elios4you device
6) Ensure the preferred network appears in the list, select and press “Next”
![](http://www.4-noks.com/wp-content/uploads/2016/10/Elios4you-App-Android-EN-04.png)
7) Inset the “ID Code” (5 digits) found on the label of the Elios4you transmitter
8) Press “Next”
![](http://www.4-noks.com/wp-content/uploads/2016/10/Elios4you-App-Android-EN-05.png)

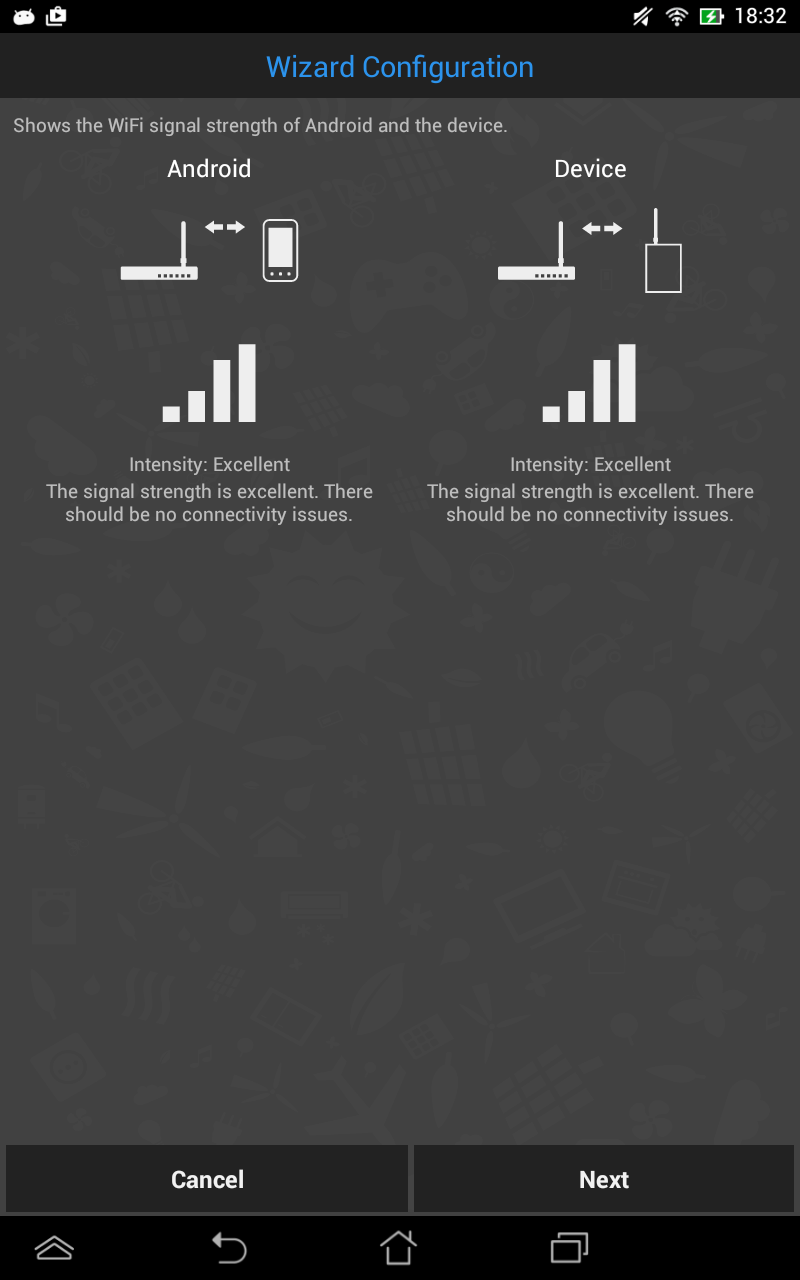

9) Verify the quality of the Wi-Fi signal between the Elios4you transmitter and the Wi-Fi router
10) Press “Next”
![](http://www.4-noks.com/wp-content/uploads/2016/10/Elios4you-App-Android-EN-06.png)

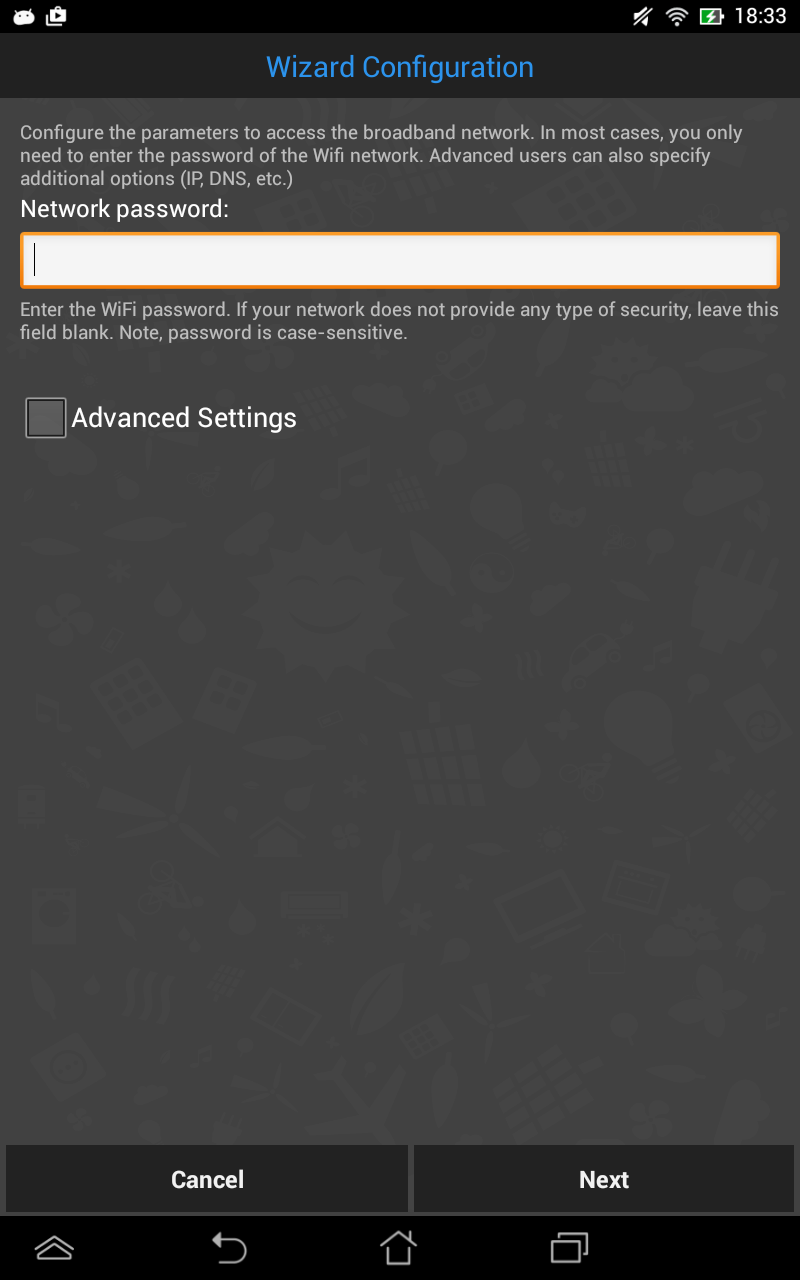

11) Enter the Wi-Fi router password
12) Press “Next”
![](http://www.4-noks.com/wp-content/uploads/2016/10/Elios4you-App-Android-EN-07.png)
13) The successful confirmation of connectivity will be indicated by a green tick
14) Press “Next”
![](http://www.4-noks.com/wp-content/uploads/2016/10/Elios4you-App-Android-EN-08.png)
15) Finish the Configuration procedure. The “Elios4you” App should now begin to receive data from the Elios4you device.
Now you can set the system parameters.
Impostazione parametri di sistema
![](http://www.4-noks.com/wp-content/uploads/2016/10/Elios4you-App-Android-EN-09.png)

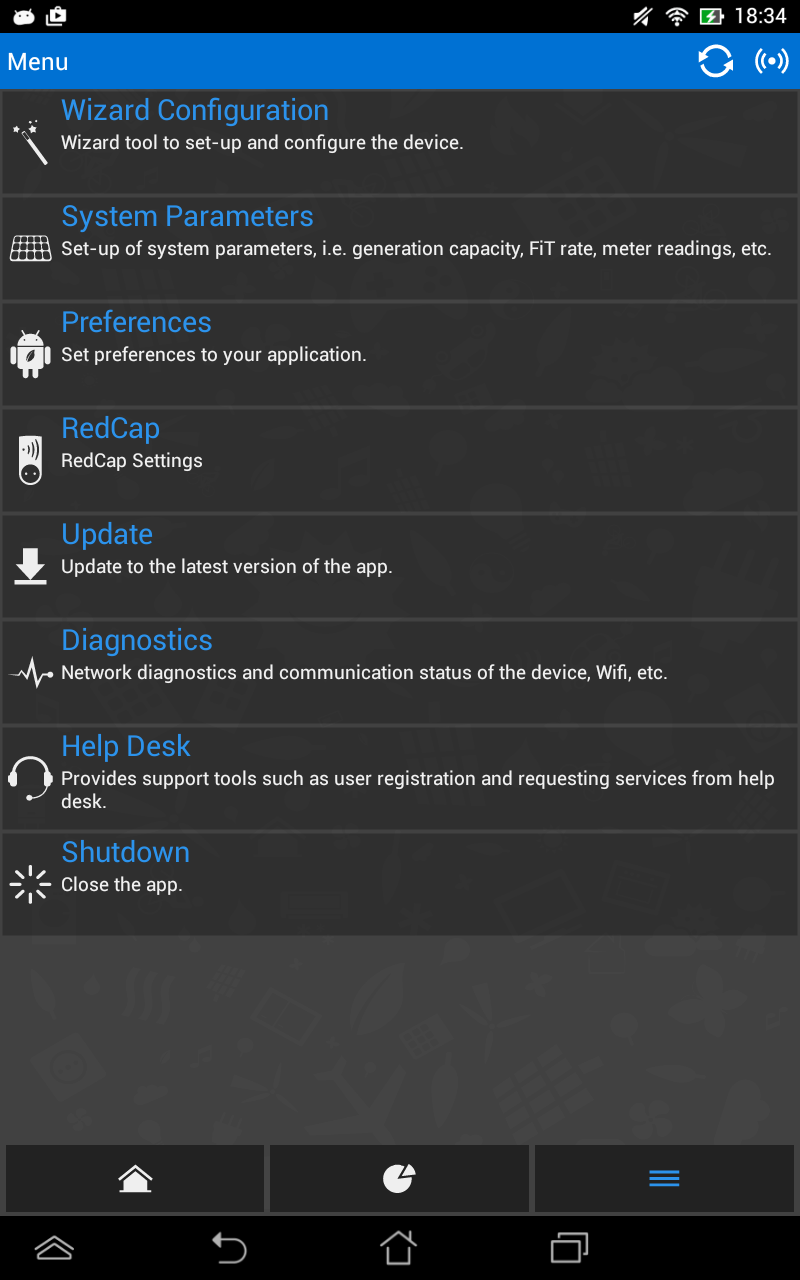

Select “Menu” > “System parameters”
![](http://www.4-noks.com/wp-content/uploads/2016/10/Elios4you-App-Android-EN-10.png)

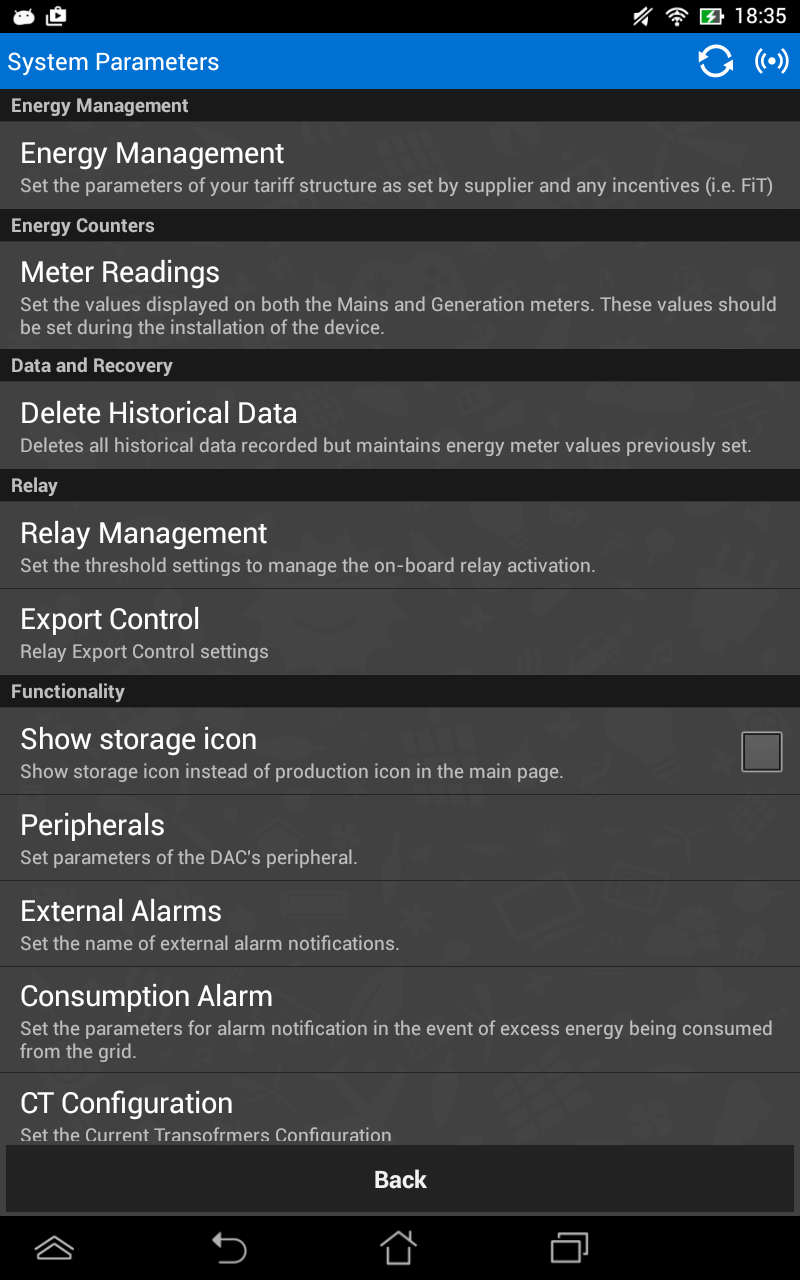

Select “Energy Management”
![](http://www.4-noks.com/wp-content/uploads/2016/10/Elios4you-App-Android-EN-11.png)

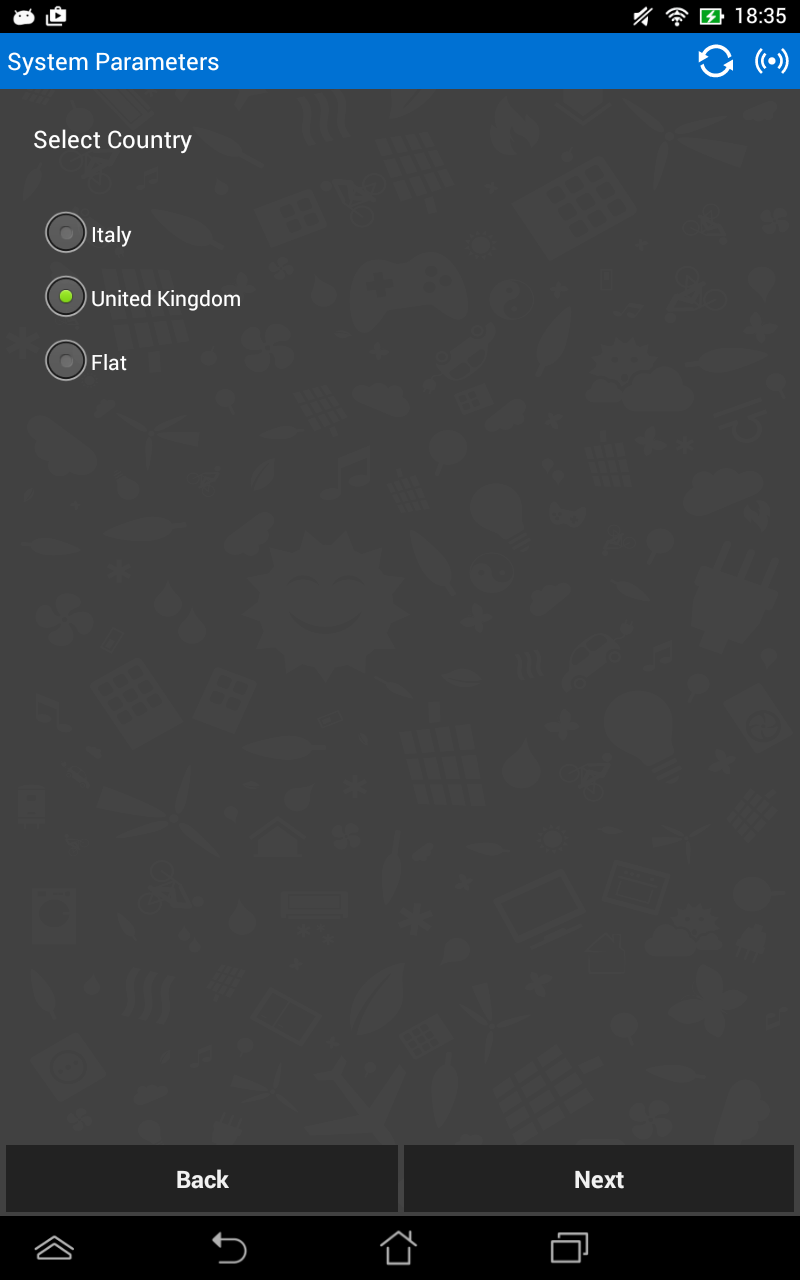

Select the Country (e.g. United Kingdom) > “Next”
![](http://www.4-noks.com/wp-content/uploads/2016/10/Elios4you-App-Android-EN-12.png)

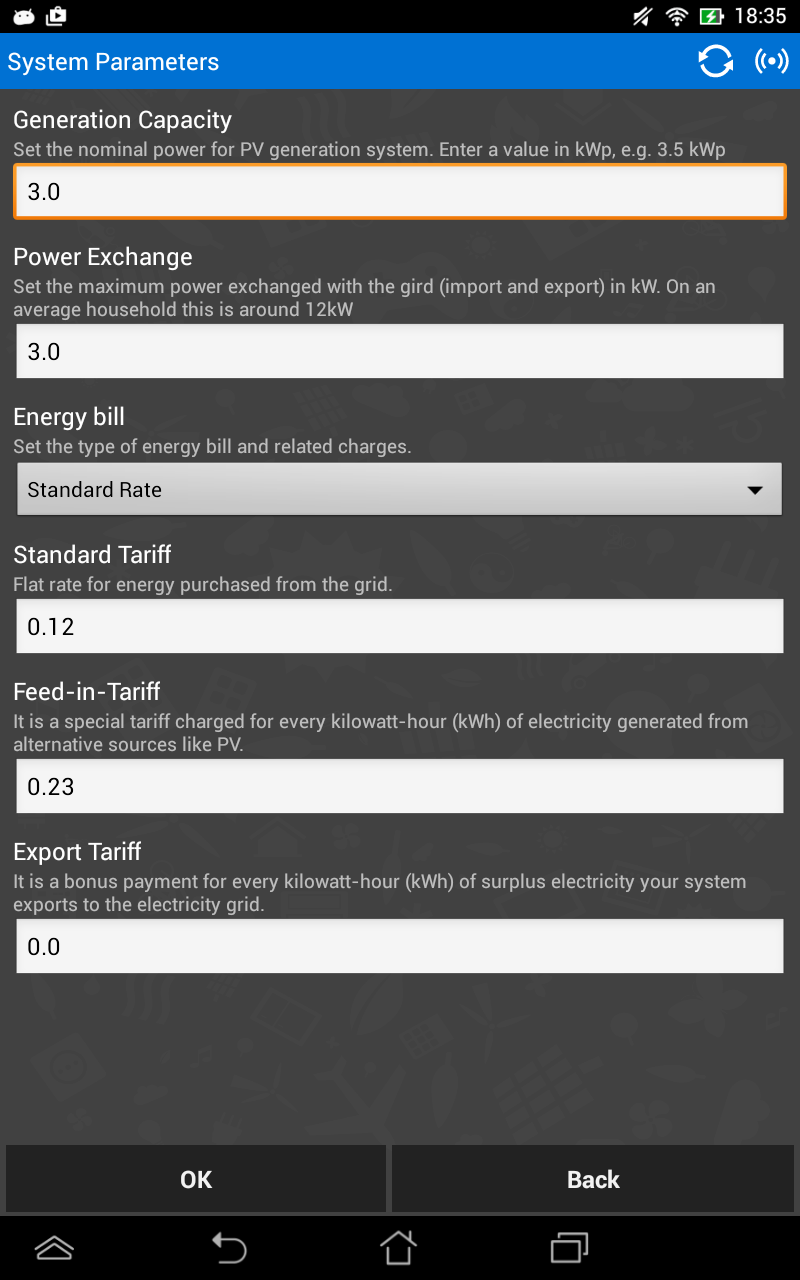

If necessary, change the default values to those relating to your PV system and Tariffs.
